Flip-Top Saw Workbench

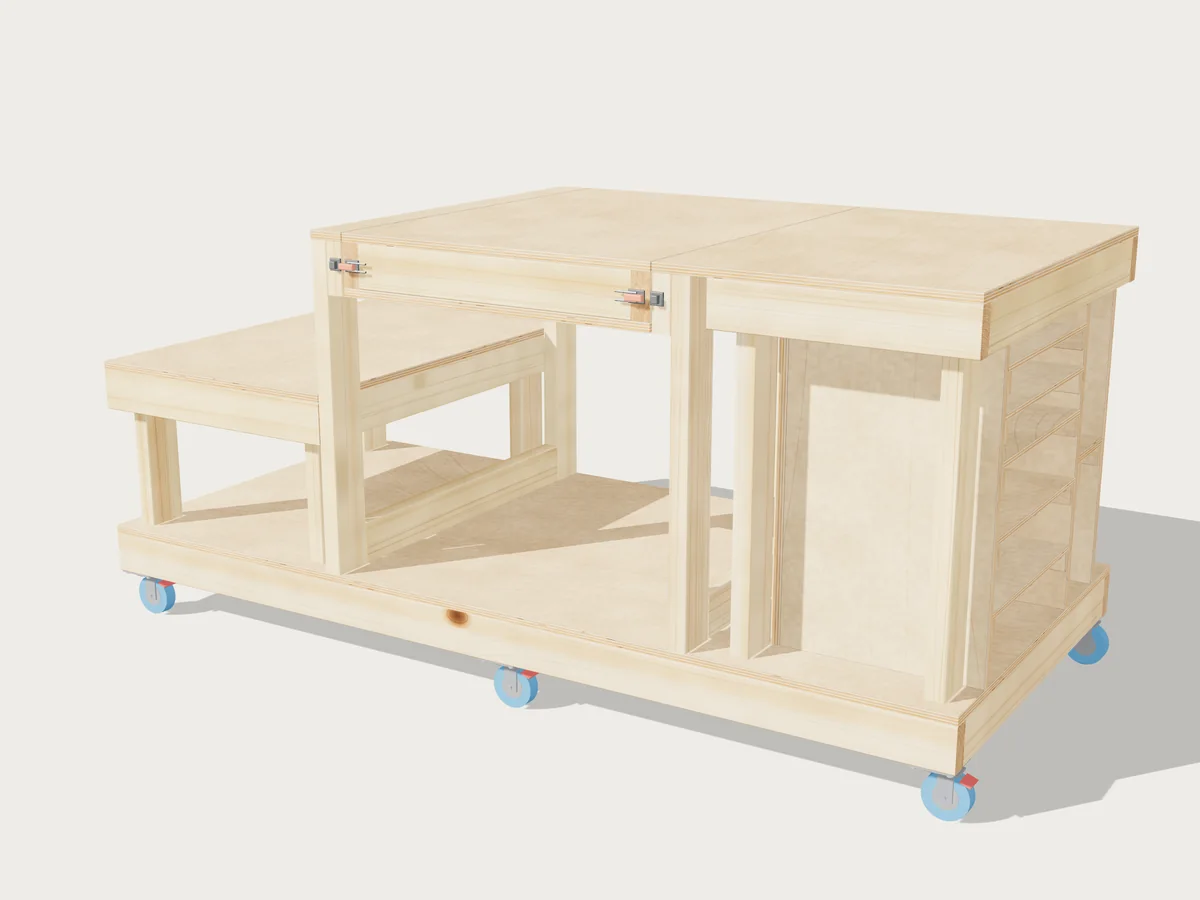

A rolling workbench in three parts: a table saw platform set low so the saw's table lands flush, a flip box in the middle with the miter saw on one face and a flat worktop on the other, and a fixed top over shelves for organizer bins.
Standard size77 1/2 × 37 3/16 × 36 in
You'll need13 2x4s (8 ft), 3 sheets of 3/4" plywood
Parts to cut68
Plan$20, once
Change any size and Benchside redraws it, recounts the material and rebuilds the plan.
Built around your shop
- Your table saw's size and base-to-table height
- Your miter saw's footprint, table height and overall height, so it clears the base as it swings
- Bin shelves sized to your bins, deep and shallow rows
- Your work height and caster height
How it goes together
- Build the base frame, plywood it and put the six casters on.
- Build the table saw platform and the two pairs of flip posts.
- Glue up the flip box, bolt the bearings on, slide the tube through and lock the box to it with the rod flanges.
- Fit the latches and the tops either side, flush with the box.
- Build the right section and the bin shelves.
The plan has every step written against the part letters in its cut list, with drawings of each part that has joinery.
What you can change
Table sawMiter sawBenchBin shelvesFrame and legsTops and flip box skinsBaseBin case and shelves
Hardware
| 1 | 3/4" OD stainless steel round tube, cut to 35-3/4" (the axle) |
| 4 | 5/16" × 2-1/4" carriage bolts with washers and nuts (bearings) |
| 6 | 3" swivel casters, plate mount, 4" overall height, locking |
Plus screws and glue, counted in the shopping list.
In the $20 plan
- Cut list with every part lettered
- Cutting diagrams for every sheet and board, grain kept straight
- Printable build plan: overview, drawings, part drawings and steps
- CNC files (DXF, SVG and full-size PDF sheets, plus STEP and SKP 3D models): $8 more, now or later
Bought once for your design. Two weeks to change anything, then it locks in and it's yours for good. The 3D view and shopping list are free.
