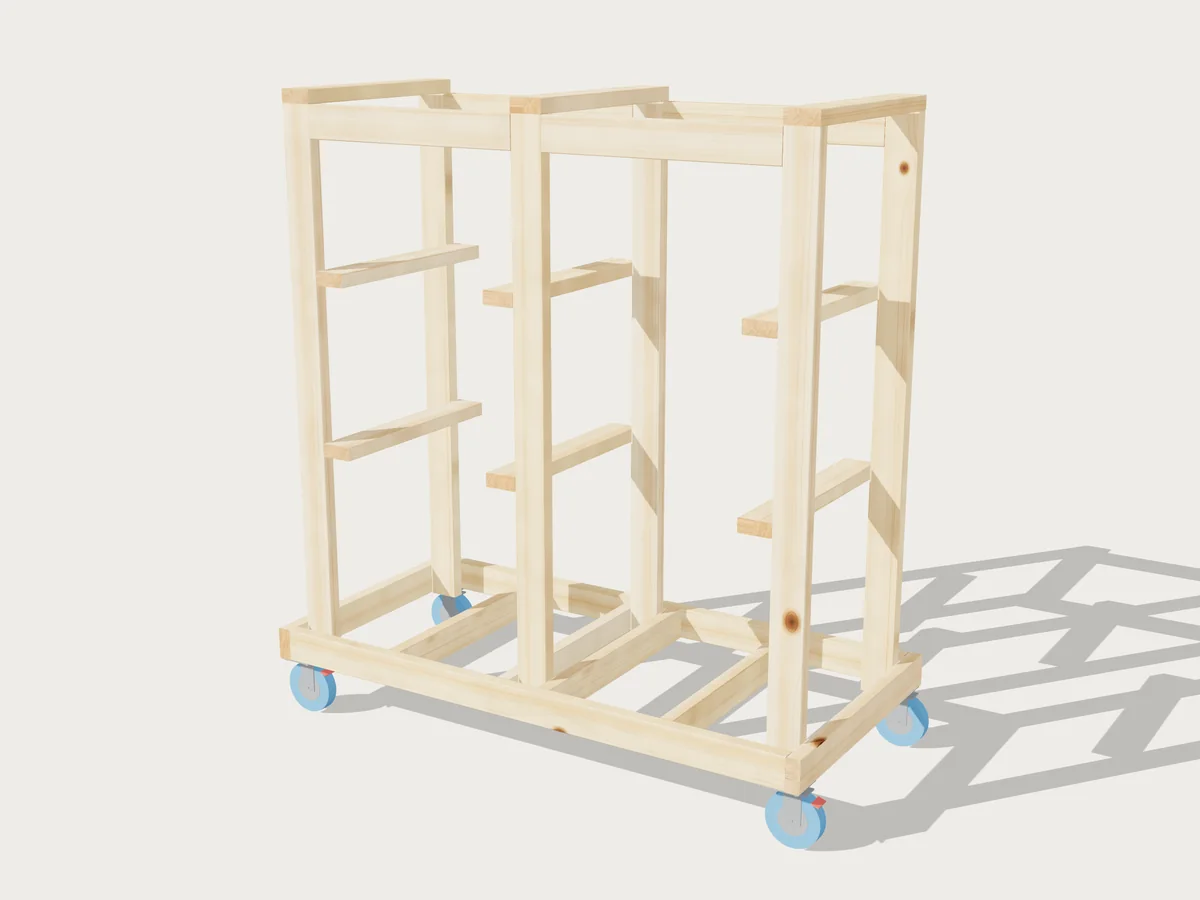

Rolling Lumber Cart
All 2x4s on casters: three upright frames on a bottom frame, with rungs that long boards lie across, so your lumber rolls to the saw and back out of the way.
Standard size63 × 30 × 67 3/4 in
You'll need12 2x4s (8 ft)
Parts to cut27
Plan$12, once
Change any size and Benchside redraws it, recounts the material and rebuilds the plan.
Built around your shop
- Any length, depth and leg height
- How many rungs and how far apart
- Your caster height
How it goes together
- Build the bottom frame: sides between the ends, middles between the sides.
- Build three upright frames: a rail across the tops of two legs, the rest as ledges on the side.
- Screw the frames into the base, square, and tie their tops together.
- Screw the casters under the corners.
The plan has every step written against the part letters in its cut list, with drawings of each part that has joinery.
What you can change
SizeRungsCastersFrame
Hardware
| 4 | 5" swivel casters, plate mount, 6-1/4" overall height, 2 locking |
Plus screws and glue, counted in the shopping list.
In the $12 plan
- Cut list with every part lettered
- Cutting diagrams for every sheet and board, grain kept straight
- Printable build plan: overview, drawings, part drawings and steps
- CNC files: DXF sheets and a STEP 3D model
Bought once for your design, and it stays yours through any edits and resizes. The 3D view and shopping list are free.
